RS232 Solar Radiation Sensor, Aluminum Pyranometer Sunshine Hour Meter, Precise Solar Radiation Device with for Meteorology, Energy

Specification: Item Type: Solar Radiation Sensor Material: Aluminum alloy Weight: Approx. 298.00g/10.5oz Product Size: Approx. 65x52x49mm/2.56x2.05x1.93in Bottom Hole Distance: Approx. 57mm/2.24in Output: RS232 (default for Modbus protocol) Red Wire: Power Black Wire: Connect to device RX, computer serial port pin 2 Yellow Wire: Connect to device TX, computer serial port pin 3 Green Wire: Power negative Power Supply: 5V Spectrum Range: 300 to 1100nm Resolution: 1W/m2 Measurement Range: 0 to 1500W/m2 Sensitivity: 7 to 14μV/Wm-2 Accuracy: ±5% Load Capacity: Current output impedance RL≤250Ω Voltage output impedance RL≥1KΩ Response Time: Cosine Response: Non Linearity: Annual Variation: Operating Environment: Temperature -40°C to 60°C; Humidity ≤100%RH Power Consumption: 0.48W For Modbus CRC Checksum Steps: 1. Initialize a 16 bit register to hex , referred to as the CRC register. 2. XOR the first 8 bits of data with the low byte of the CRC register and store the result in CRC. 3. Right shift the contents of the register by one bit, filling the highest bit with 0, and check the lowest bit. 4. If the lowest bit is 0: Repeat step 3 (shift again). If the lowest bit is 1: XOR the CRC register with the polynomial A001 (1010 0000 0000 0001). 5. Repeat steps 3 and 4 for a total of 8 shifts, processing the entire 8 bit data. 6. Repeat steps 2 to 5 for the next 8 bit data. The final CRC register obtained is the CRC code (low byte first, high byte last). Troubleshooting: The displayed value on the instrument is incorrect during output. This may be due to wiring issues or communicating port failure. Please check the wiring for correctness and stability, make sure the serial port is not being used by other devices, and verify the serial port settings are correct. packing

• [Extensive Spectrum Range] : Able to measure solar radiation from 0.3 to 1.1μm, including reflected and scattered radiation. delivers comprehensive data for various applications.
• [High Accuracy Photosynthesis] : The core component of this sensor ensures stability and in measuring solar total radiation. its premium aluminum alloy construction guarantees longevity.
• [Versatile Use] : With rs232 output and modbus protocol, this sensor is ideal for meteorology, energy, construction, and other fields. versatility combined with accuracy for diverse applications.
• [Enhanced : Equipped with a quartz glass cover processed with precise optical cold work, shielding the sensor from environmental factors. the ensures durability in adverse conditions.

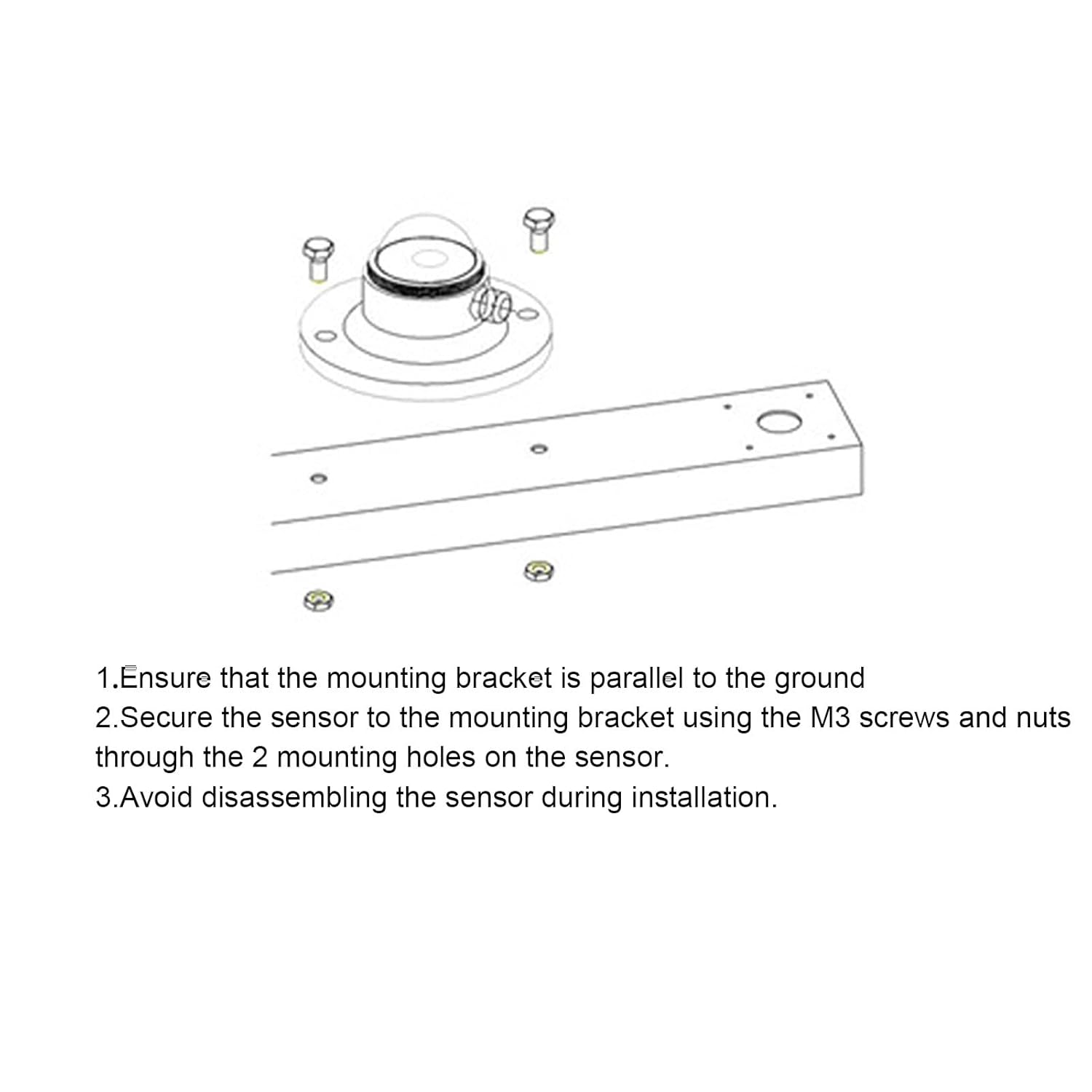

• [Easy Installation & : The sensor features a for transportation and adverse weather. simply rotate and unscrew the cover for seamless use. ensure accurate data with straightforward setup.
