| Management number | 221602334 | Release Date | 2026/05/03 | List Price | $15.56 | Model Number | 221602334 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

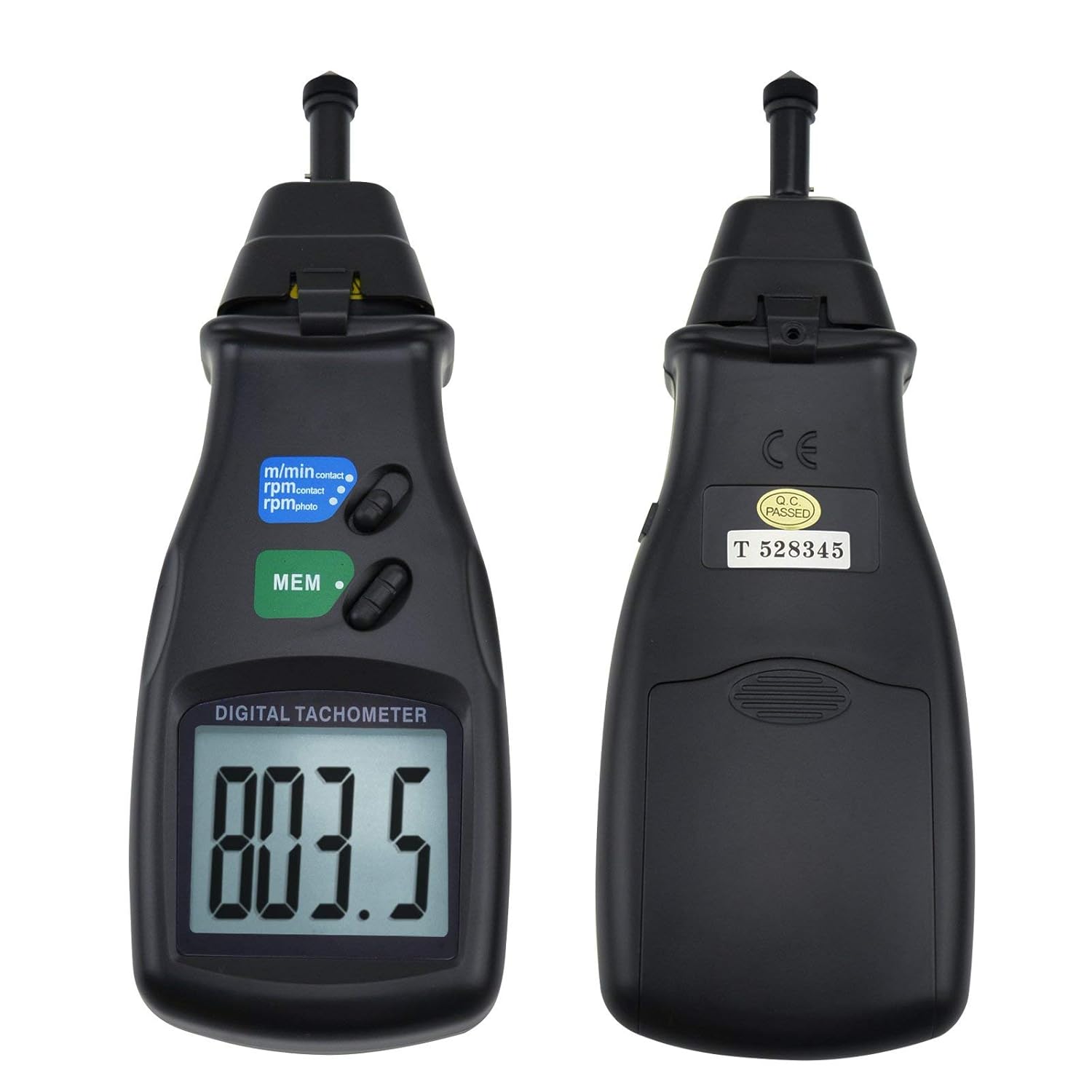

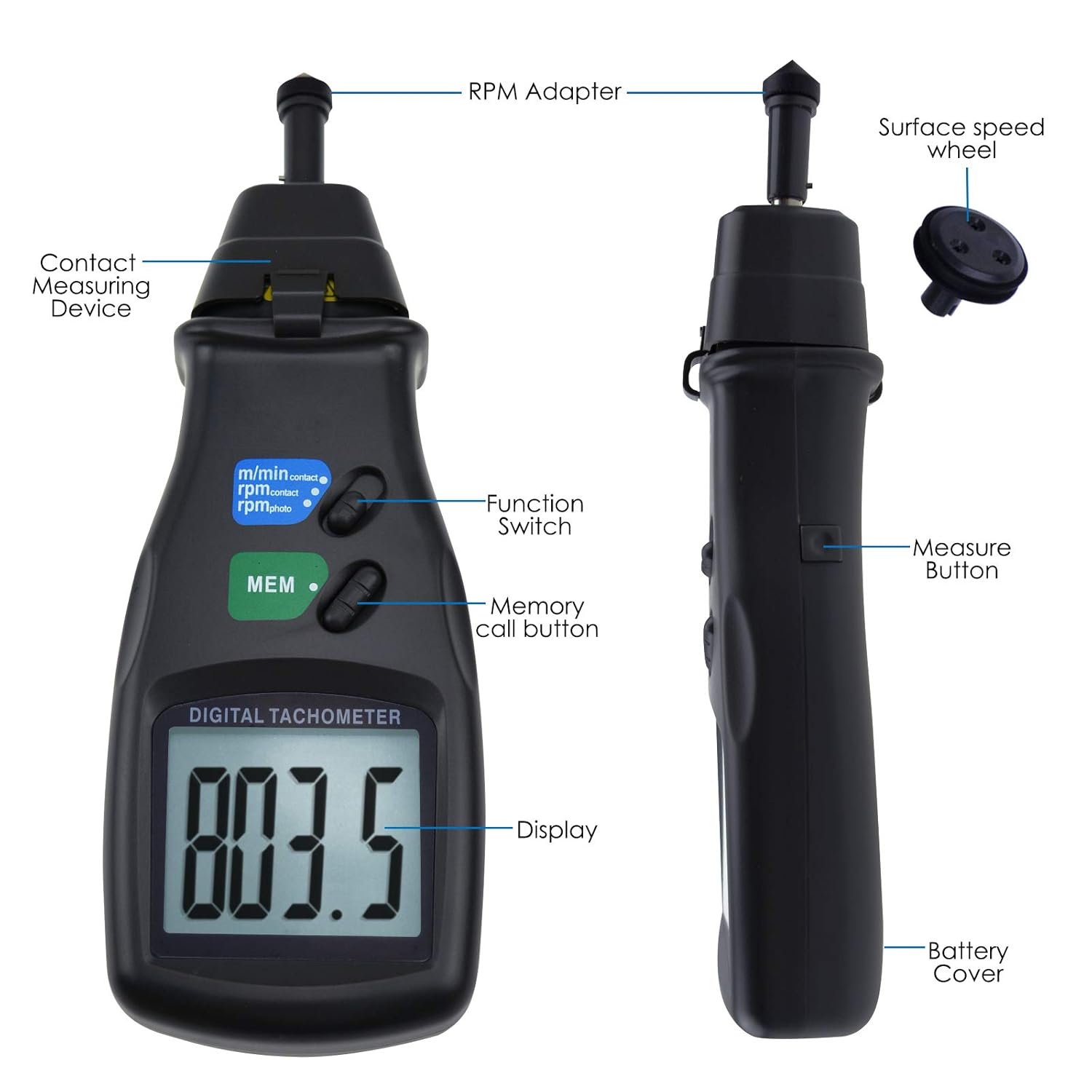

This is a digital, battery-powered portableoptical tachometer operates up to 500mm from a reflectivetarget using a laser light source1.Laser Photo (non-contact): It measures the rotational speed (RPM) using visible red lightbeam from a powerful LED. 2.Rotational Speed (contact):Measure the Rotational Speed (RPM) comes w/ contact tips that can be used to touch the rotating axle. 3. Surface Speed (Contact): precision wheel can measure meter per minutes (m/min). Note:Just attach a reflective sticker to the rotating part and point the beam on the mark froma safe distance., great when a reflective tape cannot be attached, e.g. due to grease or water.SpecificationsMeasurement Range: PHOTO/LASER : 2.5 to 99,999RPMCONTACT: 0.5 to 19,999RPMSURFACE SPEED: 0.05 to 1,999.9m/minResolution:PHOTO/LASER: 0.1 RPM (from 2.5 to 999.9 RPM)1 RPM (over 1,000 RPM)Resolution: CONTACT: 0.1 RPM (from 0.5 to 999.9 RPM)1 RPM (over 1,000 RPM)Resolution: SURFACE SPEED: 0.01 m/min (0.05 to 99.99 m/min)0.1 m/min (over 100 m/min)Accuracy: Β±(0.05% + 1 digit)Sampling Time: 0.8 sec (over 60 RPM)Time base: Quartz CrystalSet Includes: 1 x 2-in-1 Digital Photo &Contact Tachometer 3 x Reflective Tape Mark (total600 mm) 1 x Contact speed measurement fitting 3 x Contact rotational speed measurement fitting 2 x ScrewEnglish Quick Start Guide Standard factory package
| UPC | 713072684015 |
|---|---|
| Model | THTK-745 |
| Brand Name | TEKCOPLUS |
| Item Weight | 0.7 Pounds |
| Part Number | THTK-745 |
| Manufacturer | TekcoPlus Ltd |
| Material Type | Acrylic |
| Item Dimensions | 10.43 x 1.97 x 5.12 inches |
